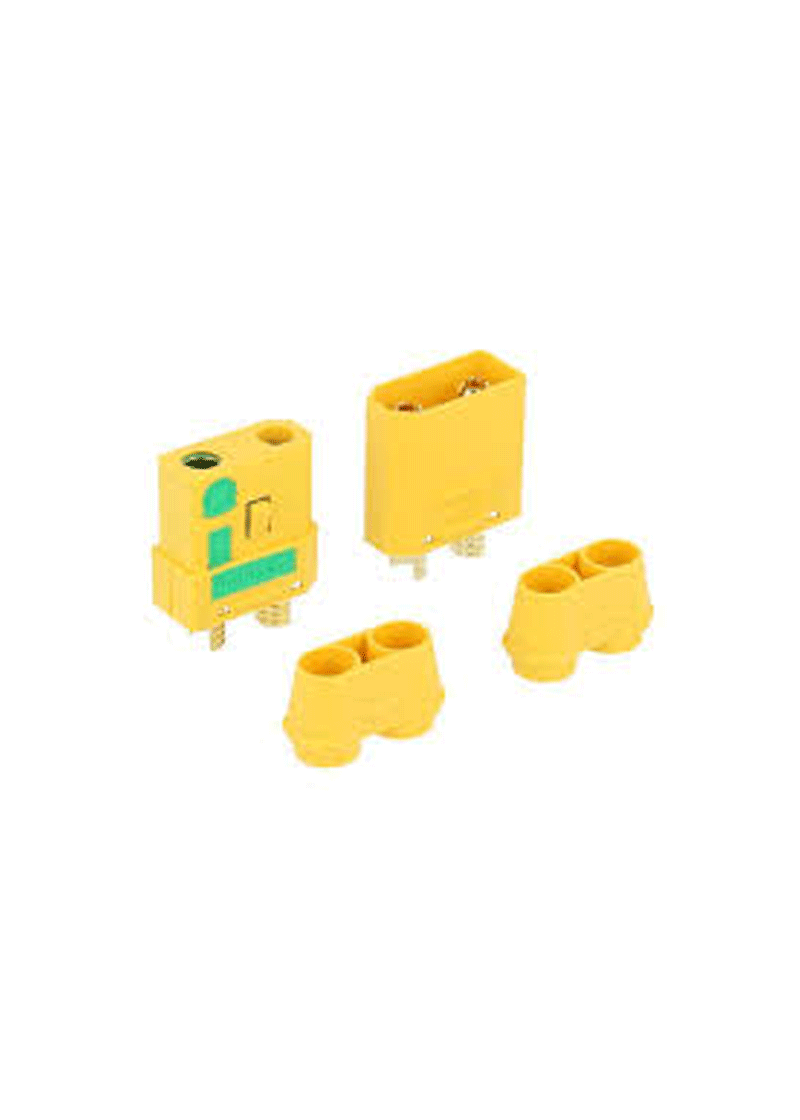

AMASS XT90-S XT90 Anti-Spark Male Female Connector Plug RC Parts B9D8

Amass XT90-S XT90 plug kit is the upgrade version. The main feature of this plug is “anti-spark”. They integrated the resistance into this small plug to prevent the spark.

Features:
Half open end, easier for welding
Non-slip insulator, easy to connect.
Clear “+” and “-” mark, avoid the mistake.
Adopts 4.5mm banana plug, upgrade version.
Light weight, small size, high current endurance performance.
Unique anti-spark design, compatible with XT90.
The groove slot design make the connection stronger and avoid any mistake when you use it.
Used in RC battery and motor.

Specifications:
Brand: AMASS
Item No.: XT90-S and XT90
MC: 90A
CR : 0.56mΩ (XT90 is 0.30 mΩ)
FR LEVEL: UL94 V0
Metal material: Gold plated brass
Plastic material: PA
Use times: 1000 times
Rated voltage: DC 500V
Rated current: 40A
Cable SPEC: 10AWG
Temperature: -20℃ to 120℃
