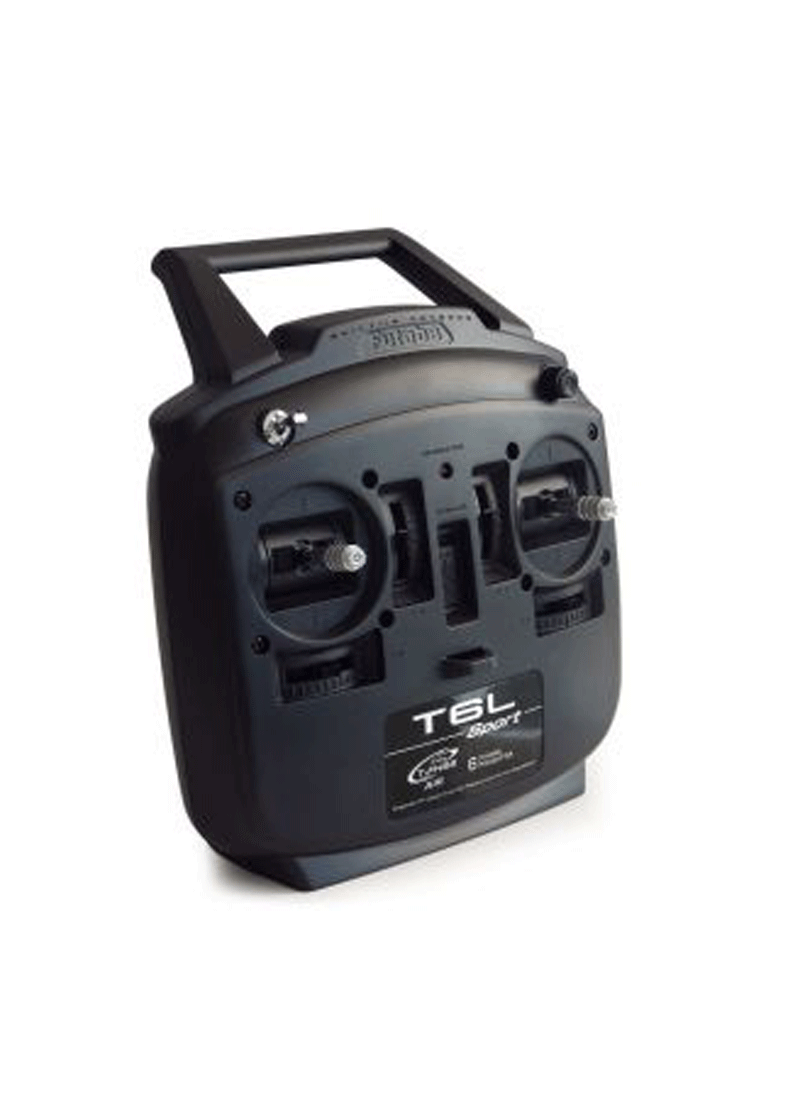

Futaba T6L 6 ch FHSS inc R3106GF Mode1

T6L 6 ch FHSS inc R3106GF Mode1
6L Sport
2.4GHz T-FHSS Mono 6-Channel Air System

SEARCH:
Tested. Trusted. Dependable.
Break into the world of the pros with the all-new 6L Sport. Ideal for almost any model. Six channels. Total 2.4GHz control. Everything you need, nothing you don’t. The supremacy of Futaba—the brand trusted by pro pilots everywhere—in your hands. Go Futaba, go further.
Features
Futaba’s T-FHSS Mono Directional 6-channel Air system
R3106GF high voltage receiver with failsafe
Built in, full range antenna for a sleek design
V-Tail, elevon, and flaperon mixing
2-position switch and rotary dial
Servo reversing
Low battery alarm
Buddy box capabilities
Range check
Mode 1 Throttle on the Right
Requirements:
4 “AA” batteries
Servos
Transmitter Specifications:
Type
2-stick, T-FHSS Mono Directional 2.4GHz System
Transmitting Frequency
2.4GHz band
Channels
6
System
T-FHSS (Mono Dircetional), no telemetry
Power Supply
4 “AA” cells (required)
Low Battery Alarm
Yes
Mixes
Elevon, V-Tail, Flaperon
Modulation
Futaba T-FHSS Mono AIR
Receiver
R3106GF (Included)
Switches
1
Telemetry
No
Trainer Connector
Student Only
Trims
4 Analog
Dials
1
Frequency
2.4GHz

Receiver Specifications:
R3106GF 2.4GHz T-FHSS Air (Mono directional)
Type
T-FHSS Air (Mono directional)-2.4GHz system, no telemetry
Power requirement
4.8V-7.4V battery or regulated output from ESC, etc.
Dimensions
1.7 x 0.98 x 0.35 in (43.1 x 25.0 x 8.8 mm)
Weight
0.3 oz (7.8g)
