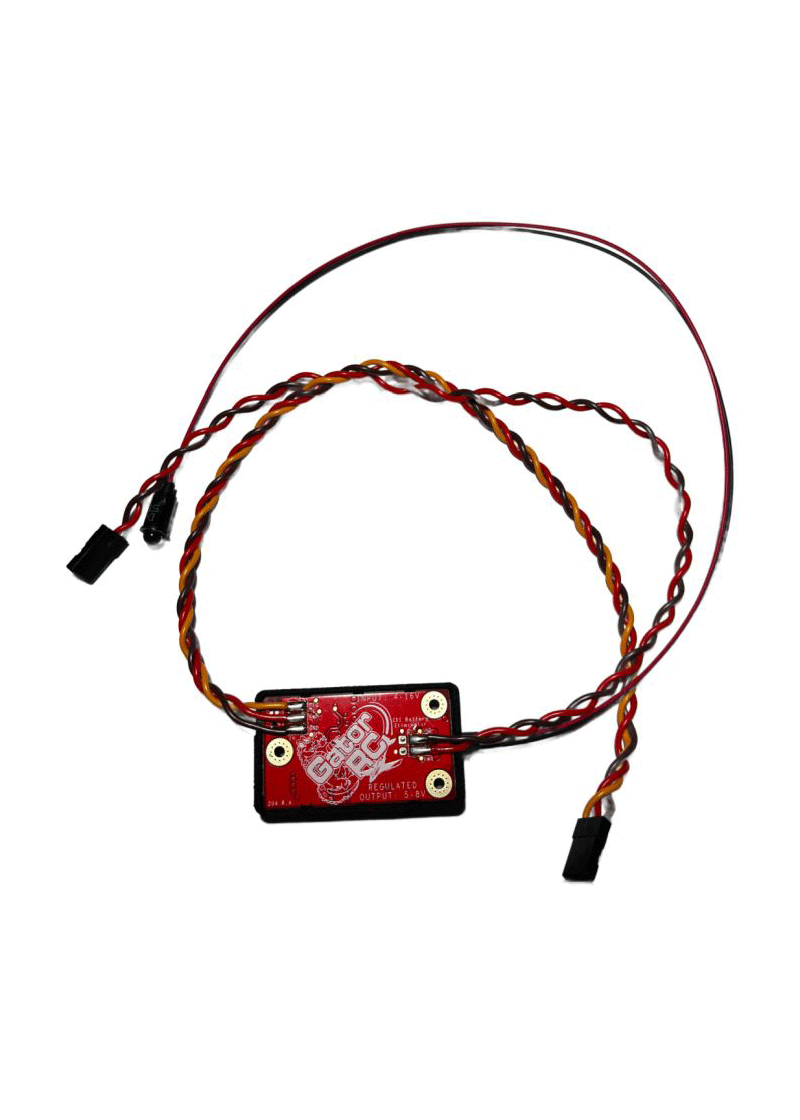

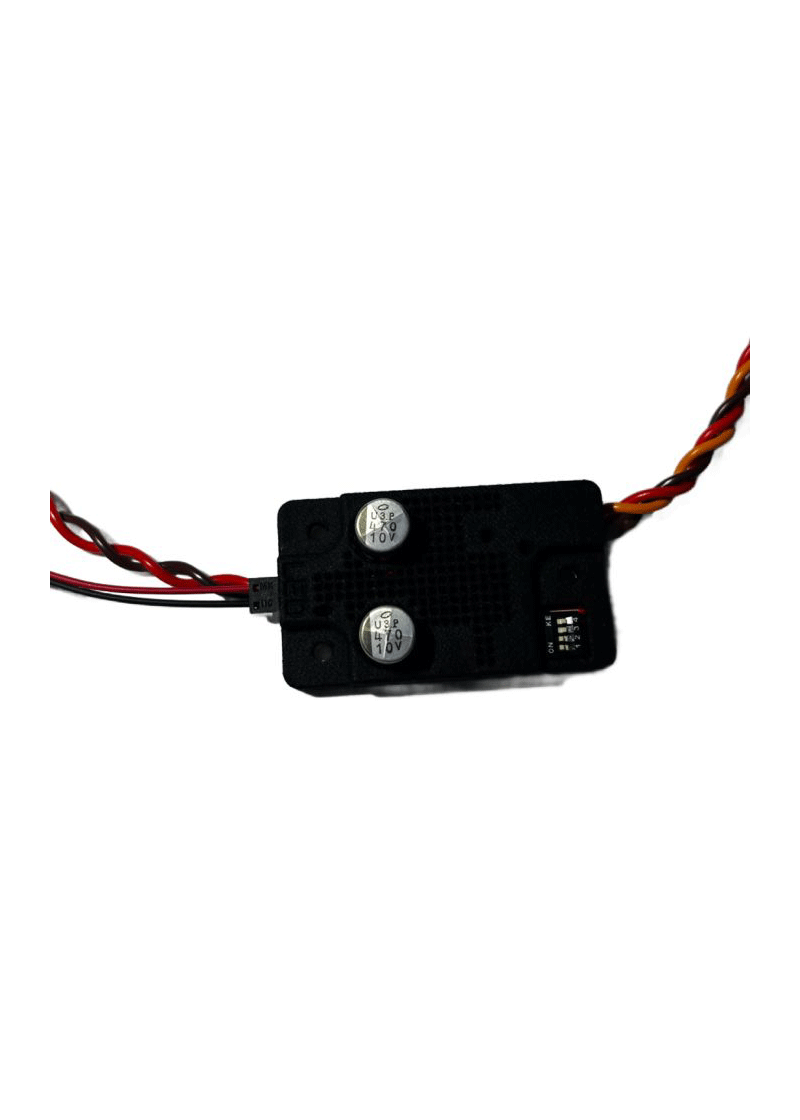

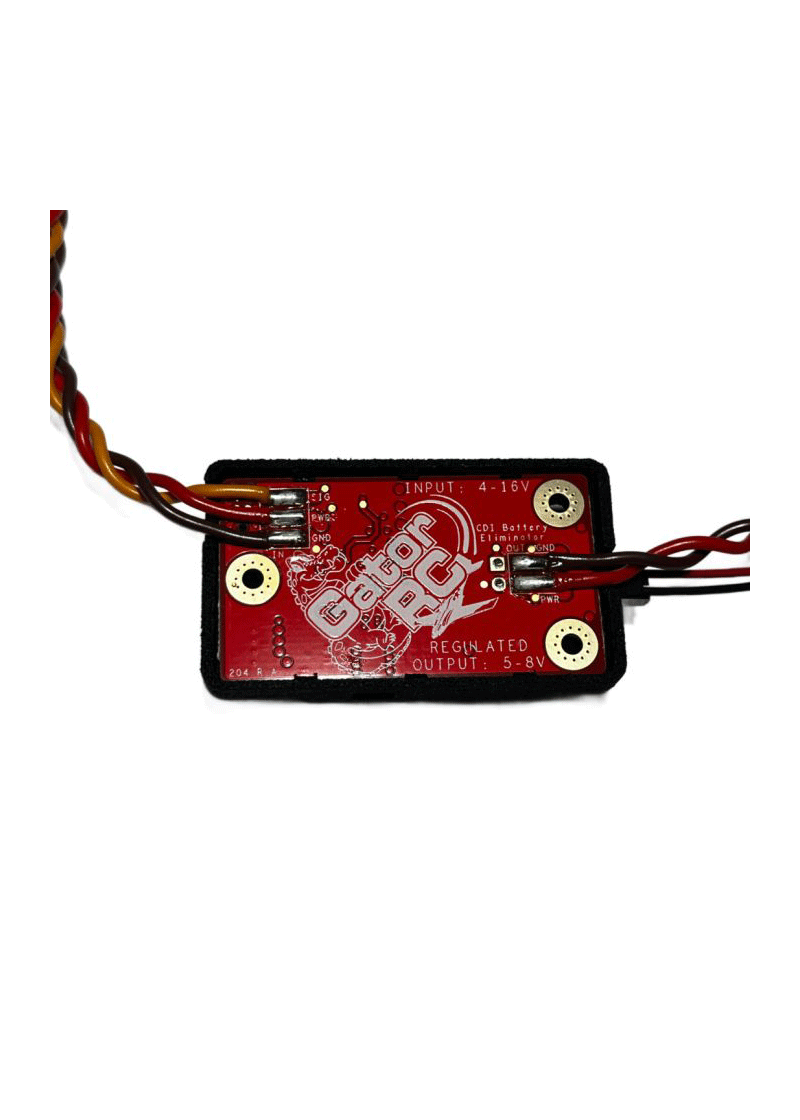

Gator RC CDI-BEC, CDI Battery Eliminator, Green LED Light

CDI-BEC, CDI Battery Eliminator, Gator-RC

FEATURES:

1. ELIMINATES SEPARATE BATTERY FOR IGNITION MODULES.

2. COMPATIBLE WITH ANY RECEIVER BATTERY TECHNOLOGY. (NICAD, NIMH, A123, LIPO, LI-ION) VOLTAGE INPUT RANGE (4.2V-16.0V)

3. ELIMINATES MECHANICAL ON/OFF SWITCH FOR IGNITION MODULES. THE IGNITION CAN BE TURNED ON/OFF WITH A TRANSMITTER CHANNEL.

4. COMPATIBLE WITH MOST CDI IGNITION MODULES. VOLTAGE OUTPUT SELECTABLE (5.0V-8.0V).

5. EIGHT (8) VOLTAGE SET RANGES (5.0V, 5.4V, 5.8V, 6.3V, 6.7V, 7.1V, 7.8V, 8.0V).

6. STATE-OF-THE-ART FILTER SECTION.

   1. ADVANCED 2^ND ORDER COMMON MODE CLC FILTER WITH FEEDTHROUGH CAPACITORS.

   2. LOW PASS/LOW ESR CAPACITORS FILTER. ALLOW PEAK PULSE CURRENT FOR THE CDI MODULE.

   3. OPTICAL ISOLATION FROM RECEIVER. PREVENT ANY CDI NOISE FROM RETURNING TO THE RECEIVER.

   4. CROSS TALK ELIMINATION WITH TWISTED POWER INPUT AND OUTPUT LEADS.

   5. 4-LAYER CIRCUIT BOARD WITH SOLID GROUND PLANES FOR BETTER NOISE SUPPRESSION.

7. AUTO SHUT DOWN ON LOW RECEIVER BATTERY TO PREVENT DEPLETING RECEIVER BATTERY. (<4.10V FOR 10 SECONDS) DEAD-STICK IS BETTER THAN LOSS OF CONTROL. (SELECTABLE ON/OFF)

8. MICROPROCESSOR SIGNAL PROCESSING OF THE RECEIVER CHANNEL ALLOWS PRECISE CONTROL OF TURN ON AND OFF.

9. CONSTANT CURRENT LED DRIVER OUTPUT. LED BRIGHTNESS DOESN’T CHANGE WITH VOLTAGE OUTPUT CHANGES. 15MA ALLOWS ANY LED TO BE USED.

10. IN-FIELD REPLACEABLE 5MM LED. GREEN LED STANDARD.

11. CURRENT STATE-OF-THE-ART POWER SUPPLY CONTROL CIRCUITRY ALLOWS A WIDE INPUT VOLTAGE RANGE AND WIDE VOLTAGE OUTPUT RANGE. IT DOESN’T REQUIRE A RECEIVER BATTERY GREATER THAN THE OUTPUT VOLTAGE SELECTED.

12. HEAVY DUTY 22AWG INPUT AND OUTPUT LEAD ALLOWS LOW VOLTAGE DROP AT HIGHER CURRENTS.

13. HIGH-RELIABILITY SMD MANUFACTURING ALLOWS FOR REDUCED WEIGHT AND SIZE.

14. DESIGNED AND MANUFACTURED IN THE USA, FROM FOREIGN AND DOMESTIC PARTS.

SPECIFICATIONS:

WEIGHT – 20G

DIMENSIONS – 27MM X 47MM X 8MM
