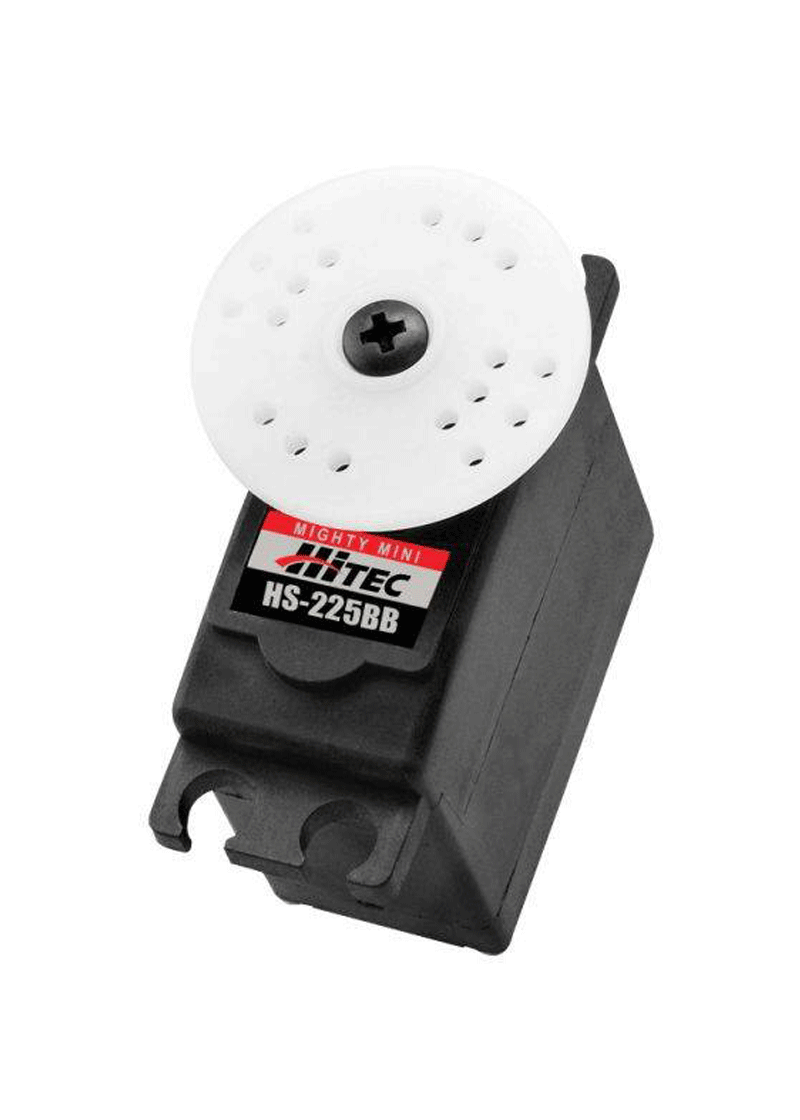

Hitec HS-225BB Mighty Mini Servo

Product Description
The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
Features
Full Size Performance in a Mini Package
Durable Nylon Gears
Top Ball Bearings
Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

HS-225BB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 54 ~ 67
Maximum Torque Range kg. / cm. 3.9 ~ 4.8
Current Draw at Idle 8 mAh
No Load Operating Current Draw 300 mAh
Stall Current Draw 1,200 mAh
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 1.27 x 0.66 x 1.22
Dimensions (Metric) 32.4 x 16.8 x 31.0
Weight (Ounces) 0.95
Weight (Gram) 27.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
