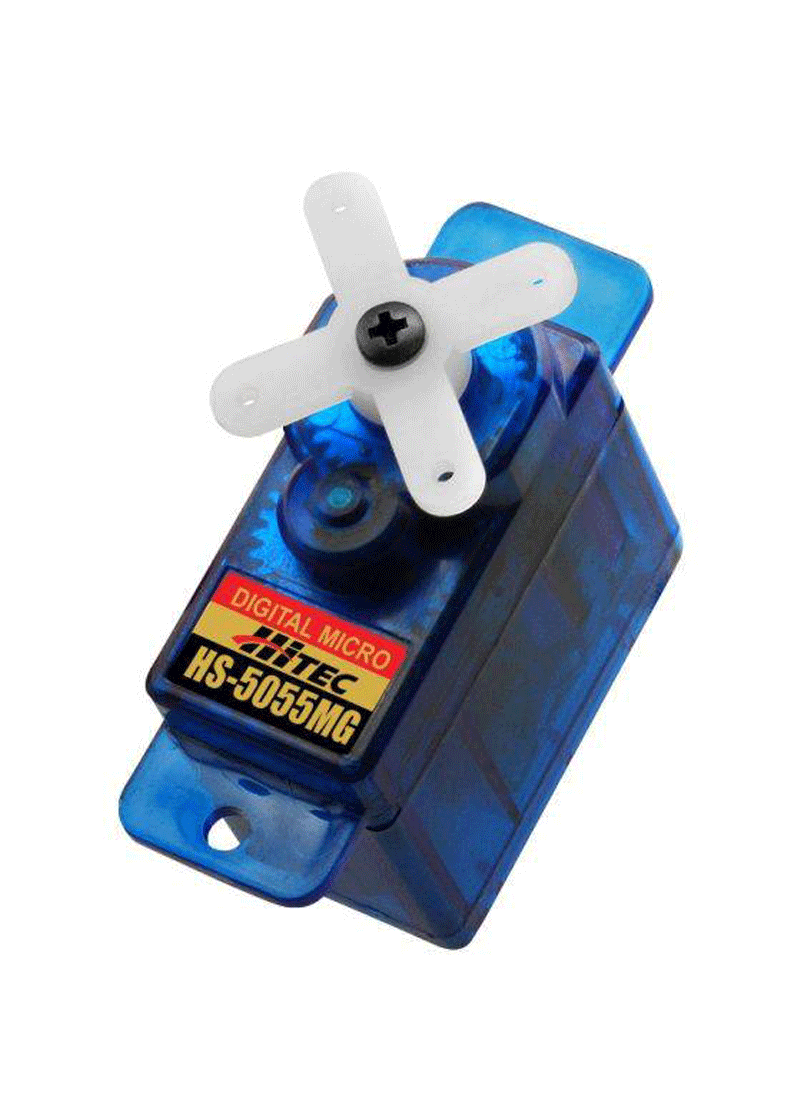

Hitec HS-5055MG Economy Metal Gear Feather Servo

Product Description
Since its introduction, the HS-55 has set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service!
Enter the new HS-5055MG digital, metal geared version… with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes.

Features
Digital Circuit for Increased Performance and Holding Power
Smooth Coreless Motor
Rugged Metal Gears
Standard Programmable Digital Circuit
Economical, Feather, Digital Servo

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

HS-5055MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.20 ~ 0.17
Maximum Torque Range oz. / in. 18 ~ 22
Maximum Torque Range kg. / cm. 1.3 ~ 1.6
Current Draw at Idle 8 mAh
No Load Operating Current Draw 120 mAh
Stall Current Draw 700 mAh
Dead Band Width 6 µs
Physical Specifications
Dimensions (Inches) 0.89 x 0.45 x 0.94
Dimensions (Metric) 22.8 x 11.6 x 24.0
Weight (Ounces) 0.33
Weight (Gram) 9.5
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / Ømm) Feather 15
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
