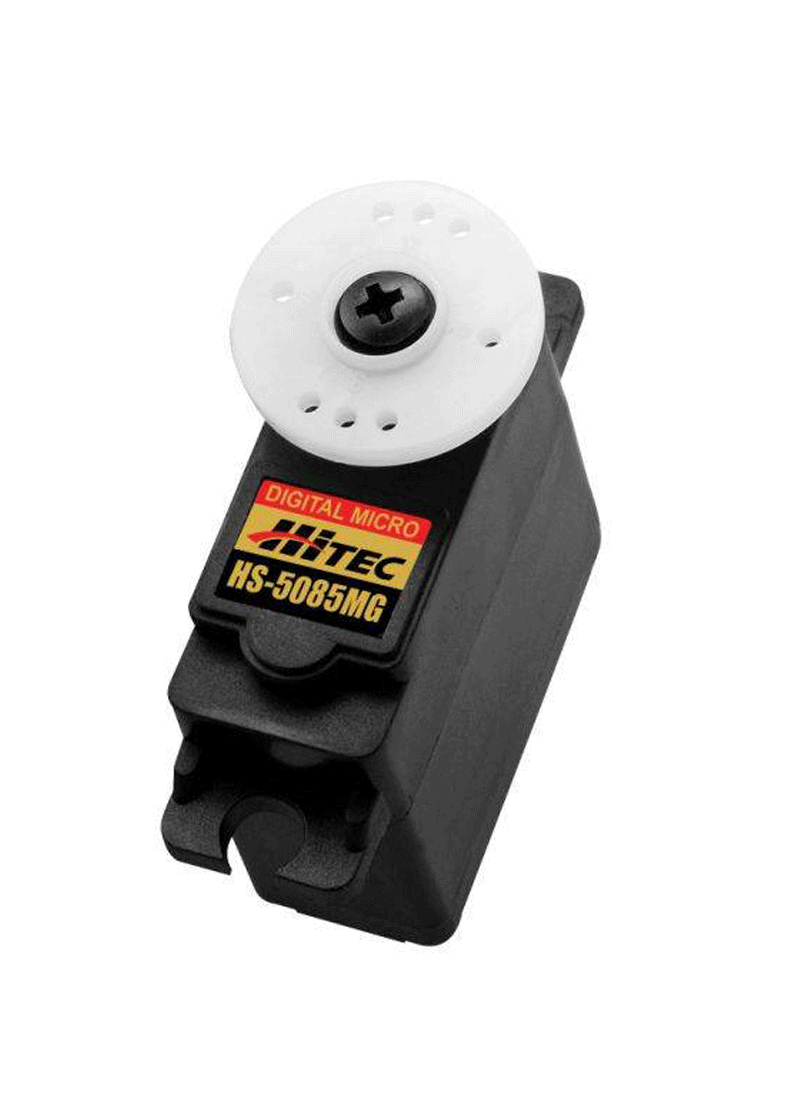

Hitec HS-5085MG Premium Metal Gear Micro Servo

Product Description
A digital version of one of Hitec’s most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

Features
Standard Servo Performance from a Micro Servo
Rugged Metal Gears
Ball Bearing-Supported Output Shaft
Standard Programmable Digital Circuit
Stronger Holding Power than the Analog Version

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

HS-5085MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 50 ~ 60
Maximum Torque Range kg. / cm. 3.6 ~ 4.3
Current Draw at Idle 3 mAh
No Load Operating Current Draw 290 mAh
Stall Current Draw 2150 mAh
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.77
Weight (Gram) 21.9
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
